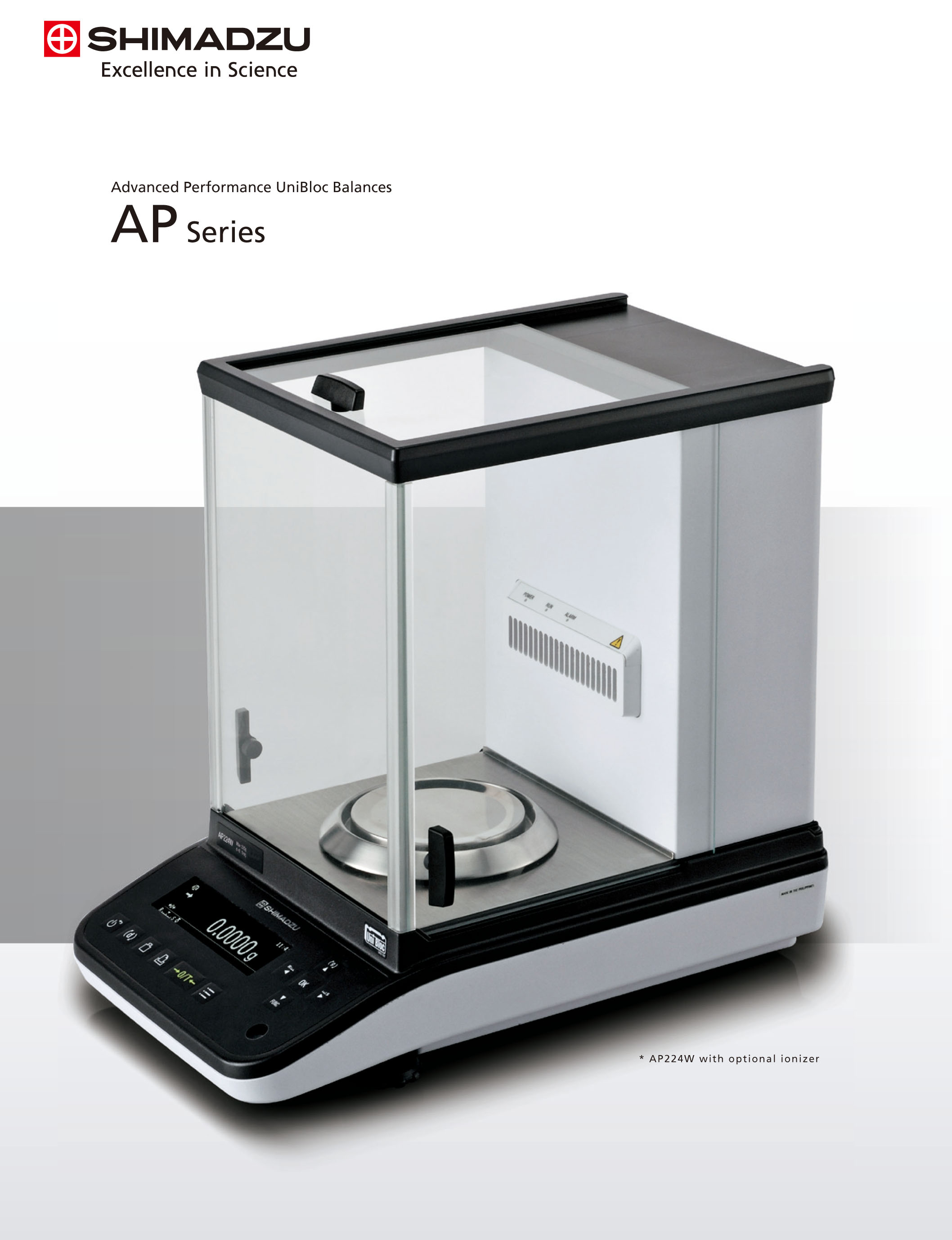

旗艦型 ---AP系列---

產品說明：

Series	W Series
Model	AP124W	AP224W	AP324W
Capacity	120 g	220 g	320 g
Minimum Display	0.1 mg
Calibration Weight	Built-in
External Calibration Weight Range for Span Calibration	45 to 120.009 g (100 g)	95 to 220.009 g (200 g)	95 to 320.009 g (300 g)
Repeatability (Standard deviation)	0.1 mg		0.15 mg
Minimum Weight *1	200 mg
Linearity	±0.2 mg		±0.3 mg
Response Time *2	Approx. 2 sec.
Operating Temperature/Humidity Range	5 to 40°C　20 to 85% *3
Sensitivity Stability Against Temperature Range	±2 ppm/°C (10 to 30°C)
Pan Size	Φ91 mm
Body Dimensions	Approx. 212 (W) x 367 (D) x 345 (H) mm
Weight	Approx. 7.0 kg
Display	OEL display (dot matrix)
Input/Output Terminal	RS-232C (D-sub9P plug) USB host (Type A) USB device(Type B) Ionizer

X Series / Y Series

Series	X Series			Y Series
Model	AP124X	AP224X	AP324X	AP124Y		AP224Y	AP324Y
Capacity	120 g	220 g	320 g	120 g		220 g	320 g
Minimum Display	0.1 mg
Calibration Weight	Built-in			No
External Calibration Weight Range for Span Calibration	45 to 120.009 g (100 g)	95 to 220.009 g (200 g)	95 to 320.009 g (300 g)	45 to 120.009 g (100 g)	95 to 220.009 g (200 g)		95 to 320.009 g (300 g)
Repeatability (Standard deviation)	0.1 mg		0.15 mg	0.1 mg			0.15 mg
Minimum Weight *1	200 mg
Linearity	±0.2 mg		±0.3 mg	±0.2 mg			±0.3 mg
Response Time *2	Approx. 2 sec.
Operating Temperature/Humidity Range	5 to 40°C　20 to 85% *3
Sensitivity Stability Against Temperature Range	±2 ppm/°C (10 to 30°C)
Pan Size	Φ91 mm
Body Dimensions	Approx. 212 (W)×367 (D)×345 (H) mm
Weight	Approx. 7.0 kg			Approx. 6.5 kg
Display	OEL display (dot matrix)
Input/Output Terminal	RS-232C (D-sub9P plug) USB device (Type B)　Ionizer			RS-232C (D-sub9P plug) USB device (Type B)
